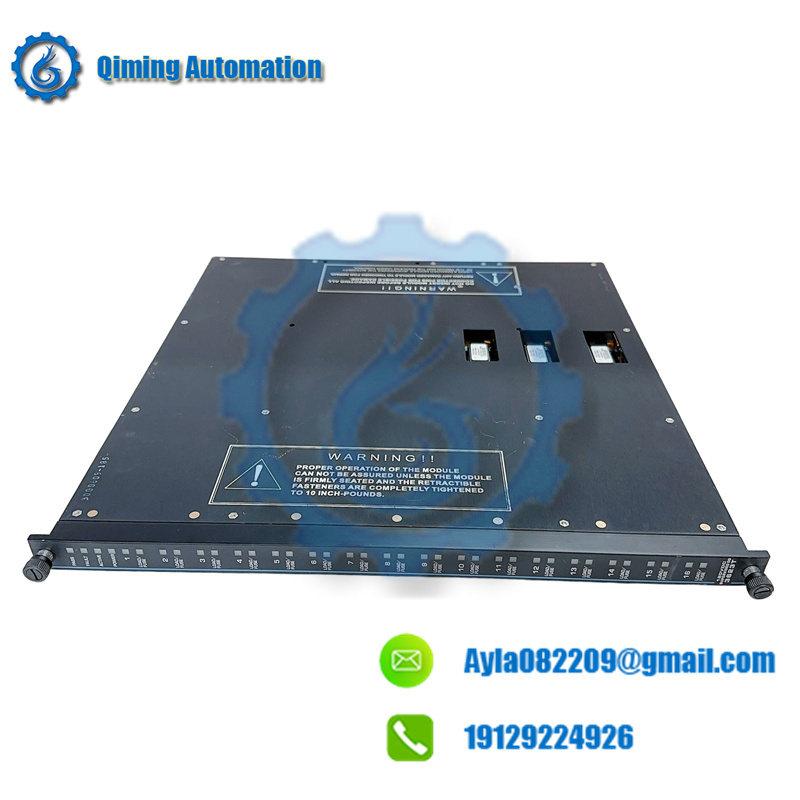

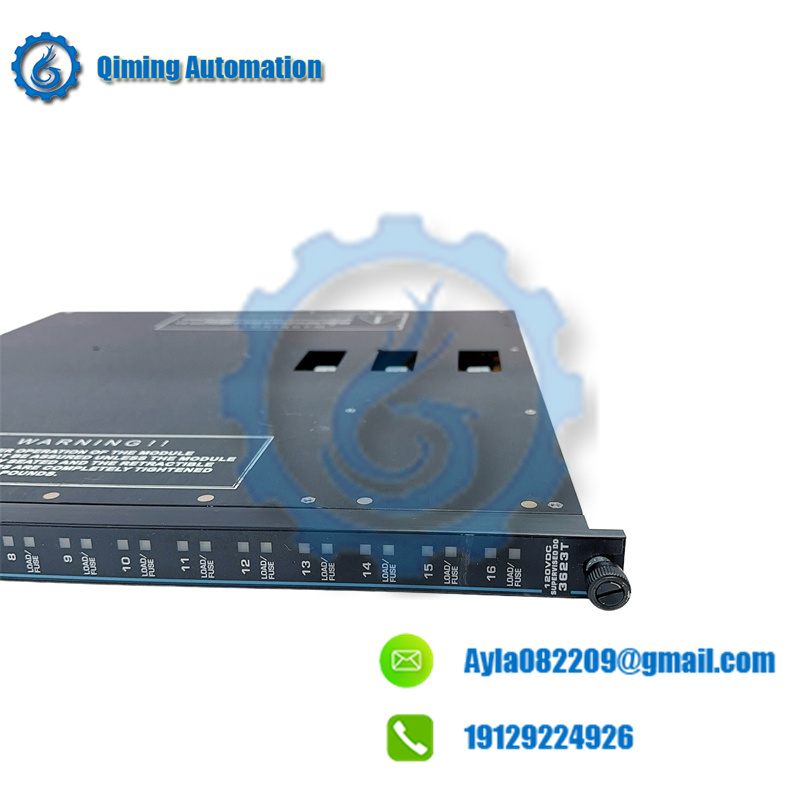

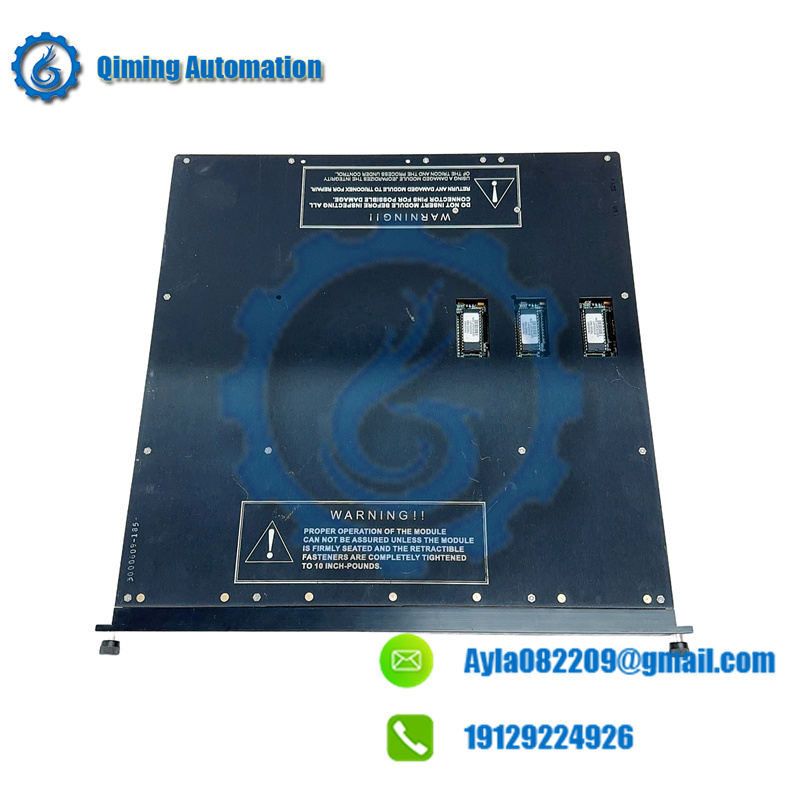

The TRICONEX 3623T is a high-performance supervised digital output module. It adopts Triple Modular Redundancy architecture for fault-tolerant operation.
It is designed for critical industrial scenarios. These scenarios require output signals to stay stable for long periods.
This module acts as a reliable execution unit in SIS and Emergency Shutdown systems.
It processes output signals from the main processor through three independent channels.
It uses quadruple output switches with power transistors. This ensures stable and accurate signal transmission to on-site equipment.
It effectively prevents system accidents caused by signal anomalies.
It has integrated voltage and current loop circuits. It achieves comprehensive fault detection without interfering with normal output.
It is a cornerstone of safe and stable industrial operations.
Core Highlights
- TMR Architecture with 2oo3 Voting Logic
- SIL 3 Certified IEC 61508 IEC 61511
- Supervised Digital Output Channels
- Continuous Diagnostic Monitoring over 99 Coverage
- Multi Protocol Communication Support
- IP67 Protection and Harsh Environment Adaptability
Technical Specifications
- Model TRICONEX 3623T
- Product Type TMR Supervised Digital Output Module
- Architecture Triple Modular Redundancy with 2oo3 Voting
- Safety Rating SIL 3 Certified IEC 61508 IEC 61511
- Output Channels 4 Supervised Digital Outputs
- Voltage Rating 24VDC Nominal 18-30VDC Operating Range
- Current Capacity 5A Maximum Load Current
- Operating Temperature minus 40°C to 85°C minus 40°F to 185°F
- Protection Level IP67
- Communication Protocols Ethernet RS-232 RS-485
- Dimensions 100mm x 50mm x 30mm Approx
- Weight Approx 0.5kg
Key Functions and Application Scenarios
The TRICONEX 3623T has advanced functions. It meets high reliability requirements of critical industrial applications.
It is widely used in multiple high-risk industries.
