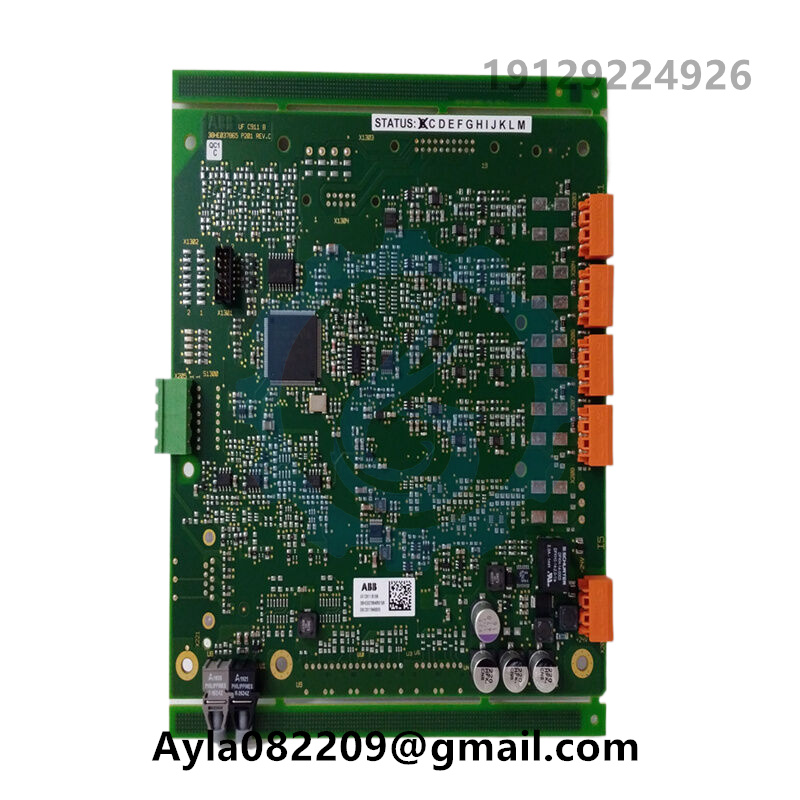

ABB UFC911B108 3BHE037864R0108 is a high-performance, multifunctional industrial automation component produced by ABB. The following is a detailed introduction to the product:

1、 Basic Information

Model: UFC911B108

Product Code: 3BHE037864R0108

Purpose: Used for connecting equipment between frequency converters and motors, and also suitable for power control and protection in industrial automation control systems.

2、 Product Features

Compact design and small volume:

Easy to install and integrate in the control system.

Multiple functions:

This module has multiple functions such as programmable logic control, system control, I/O control, etc., which can meet the needs of different control systems.

High speed data transmission:

Connected to the control unit of ACS600 frequency converter through fiber optic or cable, providing reliable and high-speed data transmission to ensure the real-time and accuracy of the control system.

High precision synchronous control:

Realize high-precision synchronous control to ensure the coordinated operation of motors and other equipment.

High reliability:

Using high-quality materials and advanced manufacturing processes, it has stable and reliable performance, and can operate stably for a long time.

Security:

Equipped with multiple protection mechanisms, including overload protection, short circuit protection, etc., to ensure the safe operation of the system and equipment.

Easy to install and maintain:

This module has a simple and easy-to-use design, making it easy to install and maintain, reducing the complexity of operation and maintenance.

3、 Technical specifications

Rated voltage: 24V DC

Rated current: 10A

Protection level: IP20 (there may also be products with other protection levels, please refer to the official documentation for details)

Weight: Approximately 1.4kg (some data shows 0.3kg, which may vary depending on product version or configuration)

Shell material: Aluminum alloy

Connection method: fixed with screws

Working temperature: -25 ℃~+55 ℃

Storage temperature: -40 ℃~+70 ℃

4、 Application Fields

The ABB UFC911B108 3BHE037864R0108 module is widely used in various industrial automation control systems, including but not limited to:

Motion control: used to monitor and control the motion of mechanical equipment, such as motors, servo systems, etc., to achieve precise motion control.

Robotics technology: used in industrial robots and automation systems to detect the position and motion of robot arms, achieving precise trajectory control.

CNC machining: used in CNC machine tools and machining centers to monitor the position of workpieces and tools, thereby achieving high-precision machining.

Wind and solar energy: In the field of renewable energy, they are used to monitor the rotational position of wind and solar equipment and optimize energy production.

Elevators and lifting equipment: used to monitor the position of elevators to ensure safe and smooth operation.

In addition, this module is also applicable to multiple fields such as printing equipment, packaging equipment, medical equipment, etc., for monitoring and controlling the movement and position of various devices.
